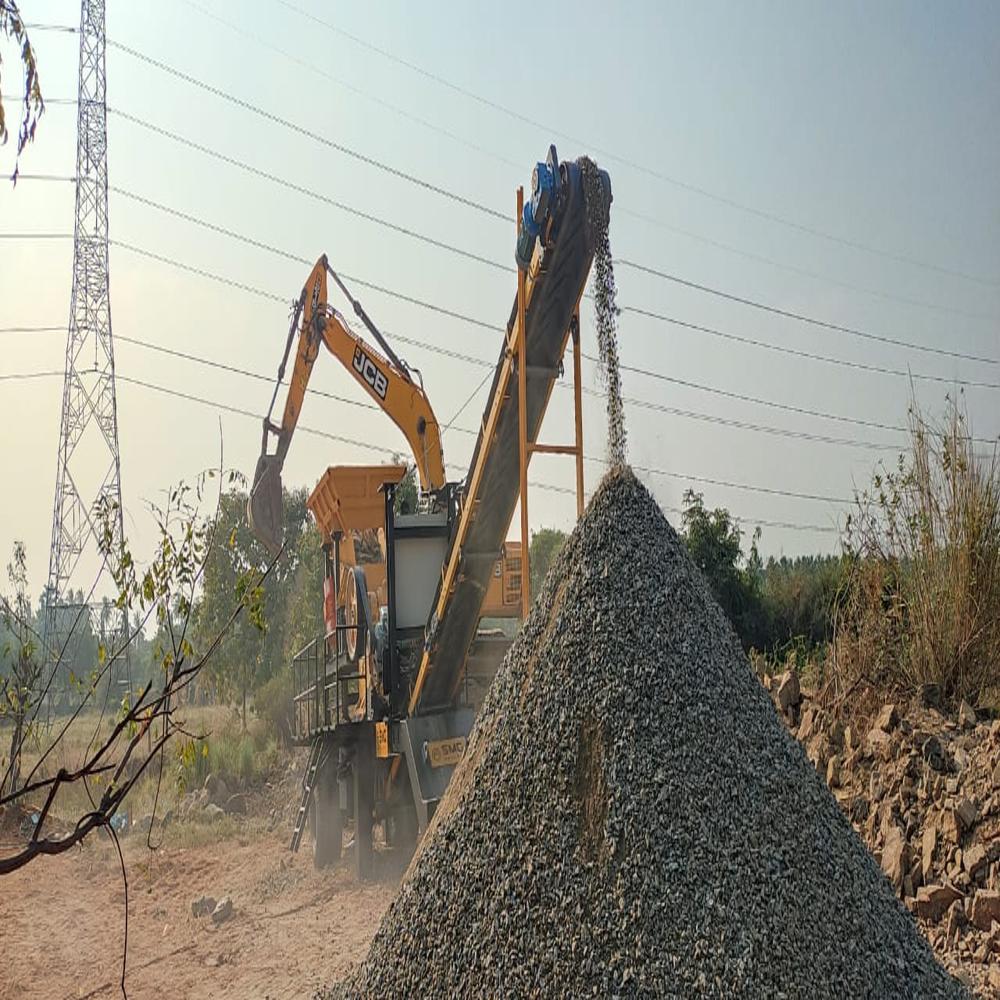

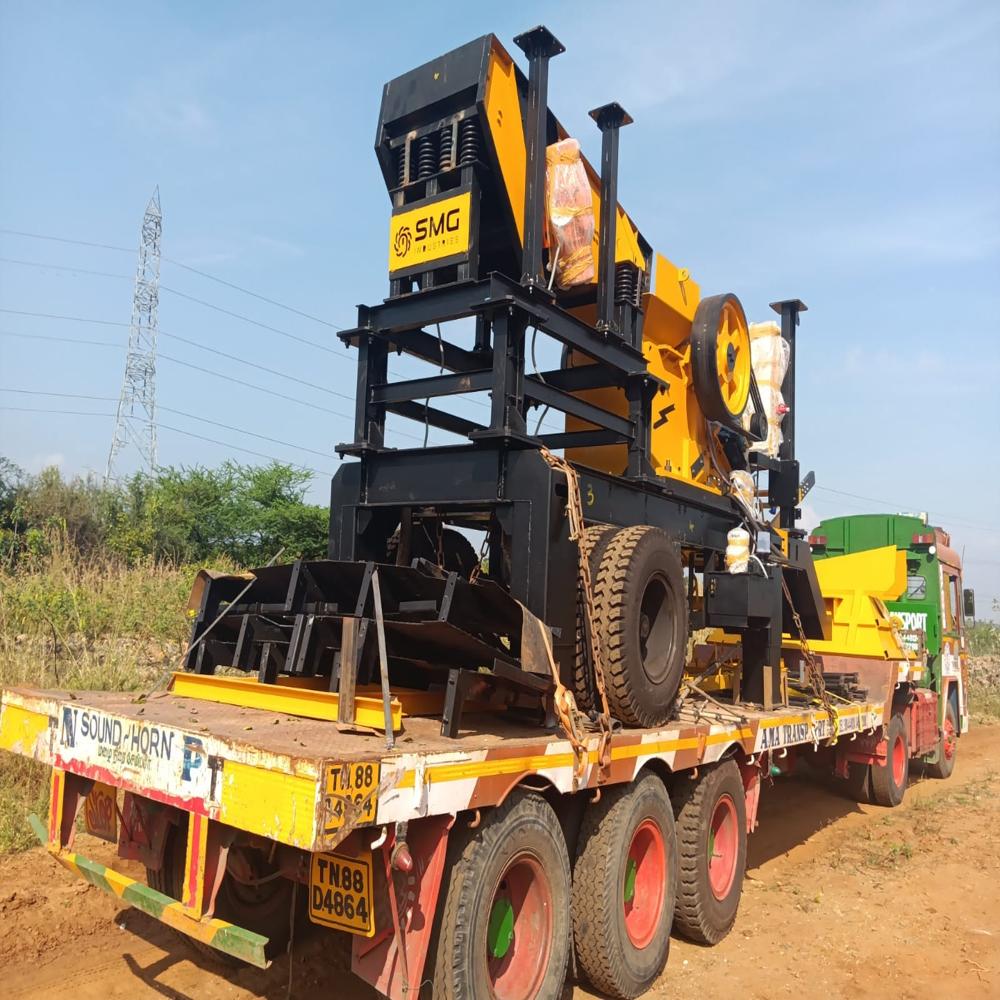

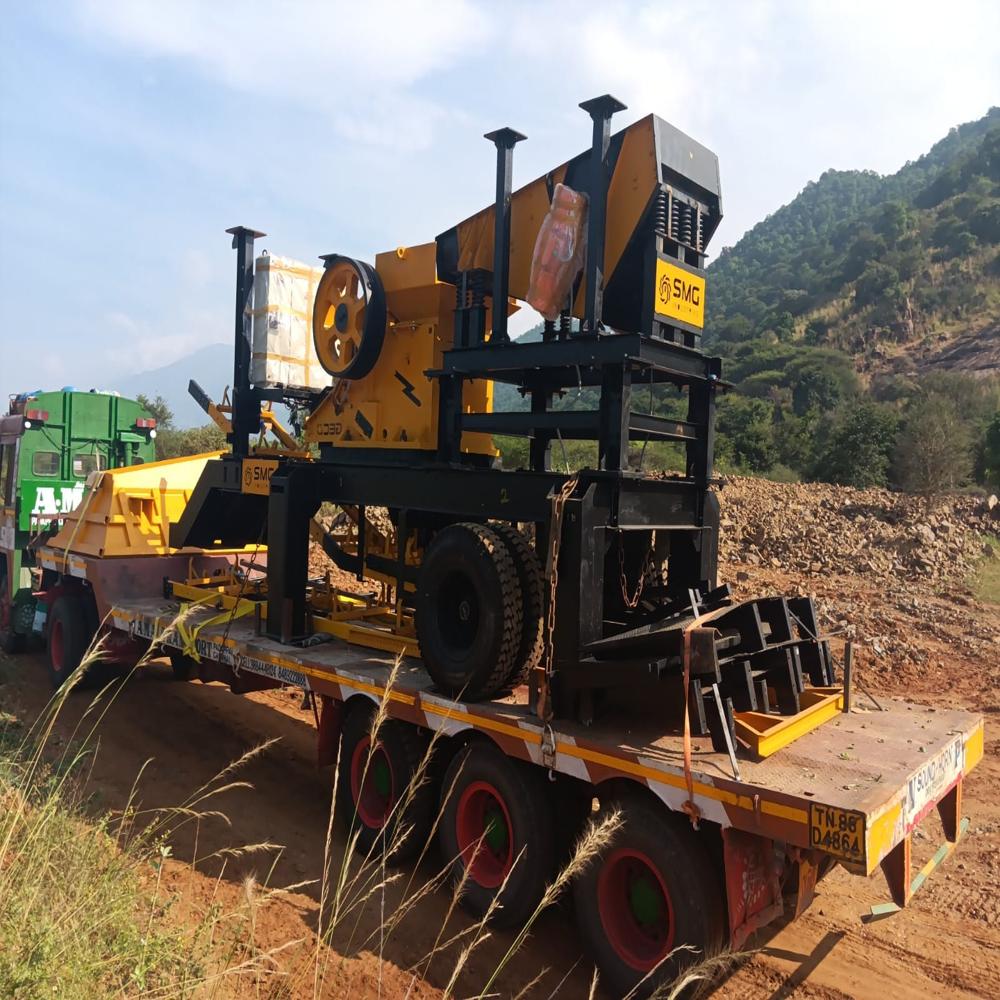

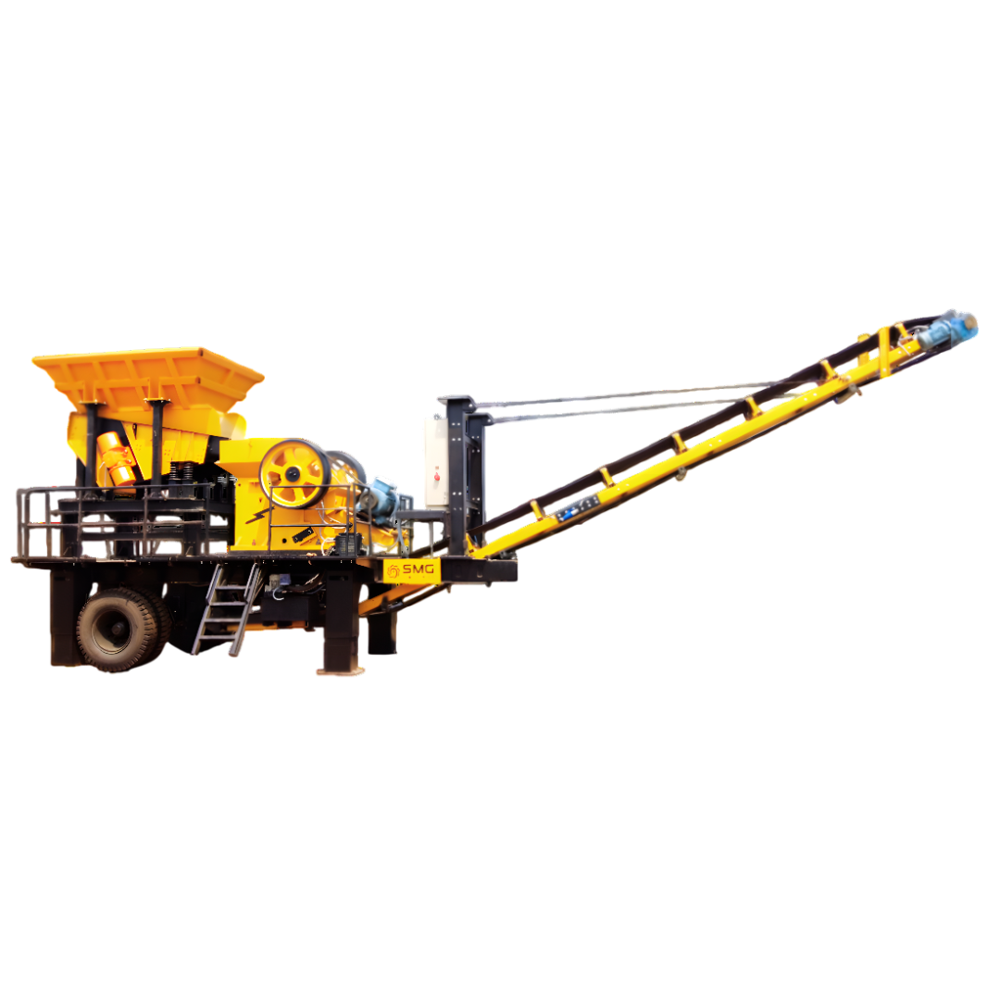

MOBILE PLANT JET 24 X 16 CRUSHING MACHINE

Product Video

MOBILE PLANT JET 24 X 16 CRUSHING MACHINE

4500000.0 INR/Unit

Get a Price/Quote

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

MOBILE PLANT JET 24 X 16 CRUSHING MACHINE Price And Quantity

Minimum Order Quantity 1 Unit
Price 4500000.0 INR/Unit

MOBILE PLANT JET 24 X 16 CRUSHING MACHINE Trade Information

Payment Terms Cash Advance (CA)
Main Domestic Market All India

Product Description

1.Single Toggle jaw crusher.2. Both 20mm & 40mm jaw plate can be used in the machine.3. Machine body thickness is 50mm.4. Crusher body is fabricated with CO2 wielding and the body is stress relived.5. EN19 Harden & grinded eccentric shaft is provided.6. NTN Bearing used (Bearing no: 22234 / 22328)7. Single steel casting jaw stock.8. Front & back bracket are steel casting.9. Keyless fly wheel and shaft.10. In 20mm setting total crushing capacity is 24 tons/hr.11. In 40mm setting total crushing capacity is 55 tones/hr.12. Machine runs in oil lubrication bearing are sealed with double oil seal.13. 140 gear oil is used for lubrication.14. 60 liter oil tank with oil hoses are provided.15. Sensors are fitted in the oil tank after the oil rotation only machine main motor will start.16. Oil change time is 600/hr.17. Hour meter is provided to check the oil change intervals.18. Pressure gauge is provided to monitor the oil pressure.19. Radiator and Air Cooler is provided to reduce the temperature of the oil.20. Hydraulic pump given for jaw stock adjustment.21. Machine runs with 50 HP 1440 RPM motor with 9inch 4C pulley.22. Both grade 3 and grade 7 jaw plates are provided as per customer requirements.23. Feeding size (14 inches).24. Machine runs in 360RPM.25. Total Machine Weight 7 tones (Approx.)

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Crushing Machine' category

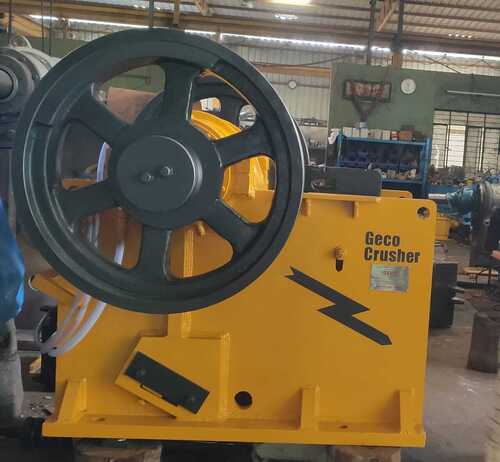

JAW CRUSHER IN TAMILNADU COIMBATORE Price : 1000000 INR/Number Minimum Order Quantity : 1 Computerized : No Feature : HeavyDuty Jaw Crusher, Other Warranty : 1 Year Automatic : No General Use : Stone Crushing Control System : Manual Product Type : Jaw Crusher Material : Other, HighQuality Carbon Steel Type : Other, Industrial Crusher Voltage : Standard Industrial Voltage Capacity : High Floor Space : Standard Floor Requirement Dimension (L*W*H) : Custom Dimensions Weight (kg) : Heavy Power : High

Send Inquiry

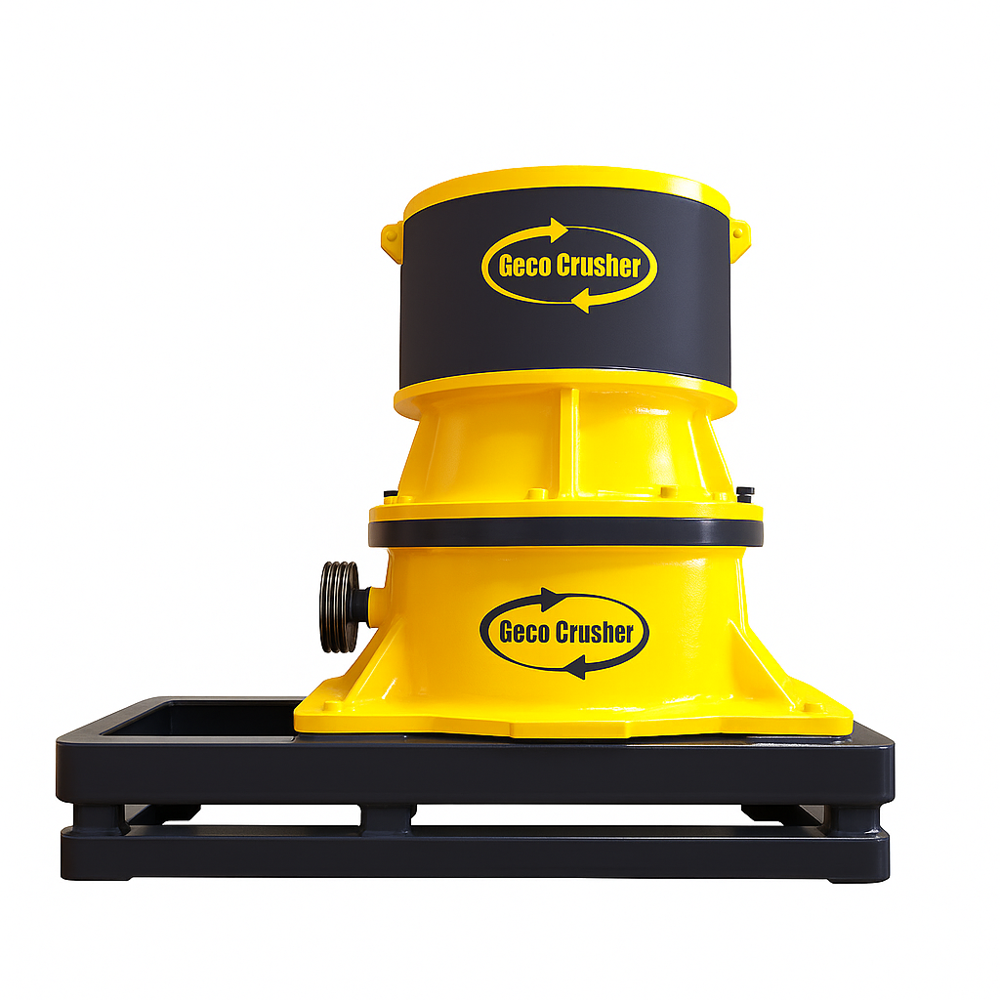

GECO CONE CRUSHING MACHINE 200 Price : 5500000.0 INR/Unit Minimum Order Quantity : 1 Computerized : No Warranty : Depends on manufacturer Automatic : No General Use : Crushing stones or ores Control System : Manual Product Type : Jaw Crusher Voltage : Depends on model Capacity : Depends on model Floor Space : Varies based on model Dimension (L*W*H) : Varies based on model Weight (kg) : Varies based on model Power : Varies based on model
